Mathematical matrix with an arbitrary number number of rows and columns. More...

#include <Matrix.h>

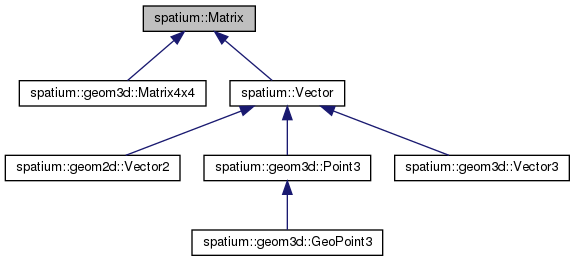

Inheritance diagram for spatium::Matrix:

[legend]

Collaboration diagram for spatium::Matrix:

Public Member Functions
	Matrix (size_t rows, size_t cols)
	Constructor. More...

	Matrix (std::initializer_list< std::initializer_list< double >> array)
	Constructor. More...

bool	operator== (const Matrix &other) const
	Compare operator. Is equal. More...

bool	operator!= (const Matrix &other) const
	Compare operator. Is unequal. More...

size_t	rows () const
	Get the number of rows. More...

size_t	cols () const
	Get the number of columns. More...

std::vector< double >	data () const
	Get all matrix elements. More...

void	clear ()
	Clear all matrix elements. More...

Matrix	transposed () const
	Get transposed matrix. More...

double	determinant () const
	Calculate determinant. More...

double	minor (size_t row, size_t col) const
	Calulcate minor. More...

Matrix	omit (size_t row, size_t col) const
	Omit a given row and column. More...

Matrix	inverse () const
	Calculate inverse of matrix. More...

double	operator() (size_t row, size_t col) const
	Access element by value. More...

double &	operator() (size_t row, size_t col)
	Access element by reference. More...

Matrix	operator+ (const Matrix &other) const
	Add by matrix. More...

Matrix	operator- (const Matrix &other) const
	Subtract by matrix. More...

Matrix	operator * (const Matrix &other) const
	Multiply by matrix. More...

Matrix	operator * (double scalar) const
	Multiply by scalar. More...

Matrix	operator/ (double scalar) const
	Divide by scalar. More...

void	resize (size_t rows, size_t cols)
	Resize. More...

Static Public Member Functions
static Matrix	identity (size_t order)
	Construct identity matrix. More...

Protected Member Functions
double	determinant (const Matrix &matrix) const
	Calculate determinant. More...

Protected Attributes
size_t	m_rows

size_t	m_cols

std::vector< double >	m_data

Friends
std::ostream &	operator<< (std::ostream &os, const Matrix &matrix)
	Output to ostream. More...

Detailed Description

Mathematical matrix with an arbitrary number number of rows and columns.

Matrix is a class to represent a mathematical matrix, i.e. a 2D array defined by a number of rows and columns. The content of the matrix is stored in column-major format.

Constructor & Destructor Documentation

◆ Matrix() [1/2]

spatium::Matrix::Matrix	(	size_t	rows,
		size_t	cols
	)

inline

Constructor.

Parameters

[in]	rows	Number of rows
[in]	cols	Number of columns

◆ Matrix() [2/2]

spatium::Matrix::Matrix ( std::initializer_list< std::initializer_list< double >> array )

inline

Constructor.

Parameters

[in] array 2D Initializer list

Member Function Documentation

◆ clear()

void spatium::Matrix::clear ( )

inline

Clear all matrix elements.

◆ cols()

size_t spatium::Matrix::cols ( ) const

inline

Get the number of columns.

Returns: Number of columns

◆ data()

std::vector<double> spatium::Matrix::data ( ) const

inline

Get all matrix elements.

Returns: All matrix elements

◆ determinant() [1/2]

double spatium::Matrix::determinant ( ) const

inline

Calculate determinant.

The determinant is calculated through expansion by minors.

Exceptions

std::out_of_range Matrix is not square

Returns: Determinant

◆ determinant() [2/2]

double spatium::Matrix::determinant ( const Matrix & matrix ) const

inlineprotected

Calculate determinant.

Recursive function.

Returns: Determinant

◆ identity()

static Matrix spatium::Matrix::identity ( size_t order )

inlinestatic

Construct identity matrix.

Returns: Identity matrix

◆ inverse()

Matrix spatium::Matrix::inverse ( ) const

inline

Calculate inverse of matrix.

Exceptions

std::out_of_range	Matrix is not square
std::out_of_range	Matrix has no inverse

Returns: Inverse of matrix

◆ minor()

double spatium::Matrix::minor	(	size_t	row,
		size_t	col
	)		const

inline

Calulcate minor.

The minor is the determinant of the matrix formed by omitting a given row and column.

Parameters

[in]	row	Row to omit
[out]	col	Column to omit

Returns: Minor

◆ omit()

Matrix spatium::Matrix::omit	(	size_t	row,
		size_t	col
	)		const

inline

Omit a given row and column.

Parameters

[in]	row	Row to omit
[out]	col	Column to omit

Returns: Matrix with omitted row and column

◆ operator *() [1/2]

Matrix spatium::Matrix::operator * ( const Matrix & other ) const

inline

Multiply by matrix.

Parameters

[in] other Matrix to multiply with

Exceptions

std::out_of_range Matrix dimensions mismatch

Returns: Multiplied matrix

◆ operator *() [2/2]

Matrix spatium::Matrix::operator * ( double scalar ) const

inline

Multiply by scalar.

Parameters

[in] scalar Scalar

Returns: Multiplied matrix

◆ operator!=()

bool spatium::Matrix::operator!= ( const Matrix & other ) const

inline

Compare operator. Is unequal.

Parameters

[in] other Other matrix

Returns: True if unequal, otherwise false

◆ operator()() [1/2]

double spatium::Matrix::operator()	(	size_t	row,
		size_t	col
	)		const

inline

Access element by value.

Parameters

[in]	row	Row of element
[in]	col	Column of element

Exceptions

std::out_of_range Matrix element out of range

Returns: Element value

◆ operator()() [2/2]

double& spatium::Matrix::operator()	(	size_t	row,
		size_t	col
	)

inline

Access element by reference.

Parameters

[in]	row	Row of element
[in]	col	Column of element

Exceptions

std::out_of_range Matrix element out of range

Returns: Element reference

◆ operator+()

Matrix spatium::Matrix::operator+ ( const Matrix & other ) const

inline

Add by matrix.

Parameters

[in] other Matrix to add

Exceptions

std::out_of_range Matrix dimensions mismatch

Returns: Added matrix

◆ operator-()

Matrix spatium::Matrix::operator- ( const Matrix & other ) const

inline

Subtract by matrix.

Parameters

[in] other Matrix to subtract

Exceptions

std::out_of_range Matrix dimensions mismatch

Returns: Subtracted matrix

◆ operator/()

Matrix spatium::Matrix::operator/ ( double scalar ) const

inline

Divide by scalar.

Parameters

[in] scalar Scalar

Returns: Divided matrix

◆ operator==()

bool spatium::Matrix::operator== ( const Matrix & other ) const

inline

Compare operator. Is equal.

Equal matrices have equal dimensions and values.

Parameters

[in] other Other matrix

Returns: True if equal, otherwise false

◆ resize()

void spatium::Matrix::resize	(	size_t	rows,
		size_t	cols
	)

inline

Resize.

This will set all values to 0.

Parameters

[in]	rows	Number of rows
[in]	cols	Number of columns

◆ rows()

size_t spatium::Matrix::rows ( ) const

inline

Get the number of rows.

Returns: Number of rows

◆ transposed()

Matrix spatium::Matrix::transposed ( ) const

inline

Get transposed matrix.

Returns: Transposed matrix

Friends And Related Function Documentation

◆ operator<<

std::ostream& operator<<	(	std::ostream &	os,
		const Matrix &	matrix
	)

friend

Output to ostream.

Member Data Documentation

◆ m_cols

size_t spatium::Matrix::m_cols

protected

◆ m_data

std::vector<double> spatium::Matrix::m_data

protected

◆ m_rows

size_t spatium::Matrix::m_rows

protected

The documentation for this class was generated from the following file:

/home/martijn/Development/Projects/SpatiumLib/include/spatium/Matrix.h
