spatium::idx::BoundingBox< T, D > Class Template Reference

Axis-aligned bounding box (AABB) in D-dimensional space. More...

#include <Bounds.h>

Inheritance diagram for spatium::idx::BoundingBox< T, D >:

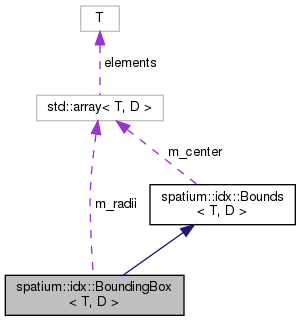

Collaboration diagram for spatium::idx::BoundingBox< T, D >:

Public Member Functions
	BoundingBox ()
	Default onstructor. More...
	BoundingBox (const std::array< T, D > &center, const std::array< T, D > &radii)
	Constructor. More...
bool	isInside (const std::array< T, D > &point) const
std::array< T, D >	min () const
std::array< T, D >	max () const
T	diameter (size_t dimension) const
Public Member Functions inherited from spatium::idx::Bounds< T, D >
	Bounds ()
	Default constructor. More...
	Bounds (const std::array< T, D > &center)
	Constructor. More...
std::array< T, D >	center () const

Static Public Member Functions
static BoundingBox< T, D >	fromPoints (const std::vector< std::array< T, D >> &points)
	Build from points. More...
static BoundingBox< T, D >	fromMinMax (const std::array< T, D > &min, const std::array< T, D > &max)

Protected Attributes
std::array< T, D >	m_radii
Protected Attributes inherited from spatium::idx::Bounds< T, D >
std::array< T, D >	m_center

Detailed Description

template<typename T, size_t D>
class spatium::idx::BoundingBox< T, D >

Axis-aligned bounding box (AABB) in D-dimensional space.

Constructor & Destructor Documentation

BoundingBox() [1/2]

template<typename T, size_t D>

spatium::idx::BoundingBox< T, D >::BoundingBox ( )

inline

Default onstructor.

BoundingBox() [2/2]

template<typename T, size_t D>

spatium::idx::BoundingBox< T, D >::BoundingBox ( const std::array< T, D > &  center, const std::array< T, D > &  radii  )

inline

Constructor.

Member Function Documentation

diameter()

template<typename T, size_t D>

T spatium::idx::BoundingBox< T, D >::diameter ( size_t  dimension ) const

inline

fromMinMax()

template<typename T, size_t D>

static BoundingBox<T,D> spatium::idx::BoundingBox< T, D >::fromMinMax ( const std::array< T, D > &  min, const std::array< T, D > &  max  )

inlinestatic

fromPoints()

template<typename T, size_t D>

static BoundingBox<T,D> spatium::idx::BoundingBox< T, D >::fromPoints ( const std::vector< std::array< T, D >> &  points )

inlinestatic

Build from points.

Parameters

[in]

points

Points in D-dimensional space.

isInside()

template<typename T, size_t D>

bool spatium::idx::BoundingBox< T, D >::isInside ( const std::array< T, D > &  point ) const

inline

max()

template<typename T, size_t D>

std::array<T,D> spatium::idx::BoundingBox< T, D >::max ( ) const

inline

min()

template<typename T, size_t D>

std::array<T,D> spatium::idx::BoundingBox< T, D >::min ( ) const

inline

Member Data Documentation

m_radii

template<typename T, size_t D>

std::array<T,D> spatium::idx::BoundingBox< T, D >::m_radii

protected

---

The documentation for this class was generated from the following file:

• /home/martijn/Development/Projects/SpatiumLib/include/spatium/idx/Bounds.h
