spatium::idx::TreeNode< G > Class Template Reference

Node in a Tree. More...

#include <TreeNode.h>

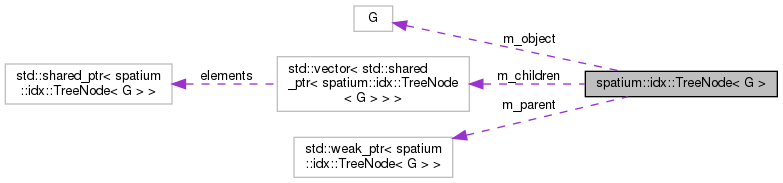

Collaboration diagram for spatium::idx::TreeNode< G >:

Public Member Functions
	TreeNode (std::weak_ptr< TreeNode< G >> parent=std::weak_ptr< TreeNode< G >>(), size_t estimatedChildCount=0)
	Constructor. More...
	TreeNode (const G &object, std::weak_ptr< TreeNode< G >> parent=std::weak_ptr< TreeNode< G >>(), size_t estimatedChildCount=0)
	Constructor. More...
bool	hasChildren ()
size_t	childCount () const
	Get child count. More...
std::shared_ptr< TreeNode< G > >	child (size_t index) const
	Get a child. More...
std::shared_ptr< TreeNode< G > >	addChild (const std::shared_ptr< TreeNode< G >> &parentSharedPtr, const G &object)
	Add child node. More...
G &	object ()
	Set the object. More...
void	setObject (const G &object)
	Get the object. More...

Protected Attributes
std::weak_ptr< TreeNode< G > >	m_parent
std::vector< std::shared_ptr< TreeNode< G > > >	m_children
G	m_object

Detailed Description

template<typename G>
class spatium::idx::TreeNode< G >

Node in a Tree.

TreeNode is a node in a Tree. Each node can have any number of children. A TreeNode is a container for a single object. The type of this object is passed as template argument.

Constructor & Destructor Documentation

TreeNode() [1/2]

template<typename G>

spatium::idx::TreeNode< G >::TreeNode ( std::weak_ptr< TreeNode< G >>  parent = std::weak_ptr<TreeNode<G>>(), size_t  estimatedChildCount = 0  )

inline

Constructor.

Parameters

[in]	parent	Parent node
[in]	estimatedChildCount	Estimated child count. Will allocate memory for the child references in advance to prevent later reallocation.

TreeNode() [2/2]

template<typename G>

spatium::idx::TreeNode< G >::TreeNode ( const G &  object, std::weak_ptr< TreeNode< G >>  parent = std::weak_ptr<TreeNode<G>>(), size_t  estimatedChildCount = 0  )

inline

Constructor.

Parameters

[in]	object	Object for node
[in]	parent	Parent node
[in]	estimatedChildCount	Estimated child count. Will allocate memory for the child references in advance to prevent later reallocation.

Member Function Documentation

addChild()

template<typename G>

std::shared_ptr<TreeNode<G> > spatium::idx::TreeNode< G >::addChild ( const std::shared_ptr< TreeNode< G >> &  parentSharedPtr, const G &  object  )

inline

Add child node.

Parameters

[in]	parentSharedPtr	Parent node (this object) as shared pointer.
[in]	object	Object

Returns

Created child node

child()

template<typename G>

std::shared_ptr<TreeNode<G> > spatium::idx::TreeNode< G >::child ( size_t  index ) const

inline

Get a child.

Parameters

[in]

index

Child index

Returns

Child or nullptr

childCount()

template<typename G>

size_t spatium::idx::TreeNode< G >::childCount ( ) const

inline

Get child count.

Returns

Child count

hasChildren()

template<typename G>

bool spatium::idx::TreeNode< G >::hasChildren ( )

inline

Returns

True when child count > 0, otherwise false.

object()

template<typename G>

G& spatium::idx::TreeNode< G >::object ( )

inline

Set the object.

setObject()

template<typename G>

void spatium::idx::TreeNode< G >::setObject ( const G &  object )

inline

Get the object.

Member Data Documentation

m_children

template<typename G>

std::vector<std::shared_ptr<TreeNode<G> > > spatium::idx::TreeNode< G >::m_children

protected

m_object

template<typename G>

G spatium::idx::TreeNode< G >::m_object

protected

m_parent

template<typename G>

std::weak_ptr<TreeNode<G> > spatium::idx::TreeNode< G >::m_parent

protected

---

The documentation for this class was generated from the following file:

• /home/martijn/Development/Projects/SpatiumLib/include/spatium/idx/TreeNode.h
