#include <Ellipsoid.h>

Inheritance diagram for spatium::geom3d::Ellipsoid:

[legend]

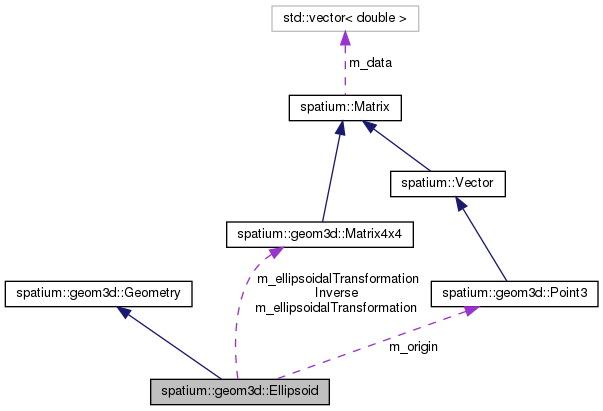

Collaboration diagram for spatium::geom3d::Ellipsoid:

[legend]

Public Member Functions
	Ellipsoid (const Point3 &origin, double axisX, double axisY, double axisZ)
	Constructor. More...

	Ellipsoid (double axisX, double axisY, double axisZ)
	Constructor. More...

	Ellipsoid (const Ellipsoid &other)=default
	Copy constructor. More...

Ellipsoid &	operator= (const Ellipsoid &other)=default
	Assignment operator. More...

virtual	~Ellipsoid ()=default
	Destructor. More...

void	origin (const Point3 &origin)
	Set origin of ellipsoid. More...

Point3	origin () const
	Get origin of ellipsoid. More...

void	axisX (double axisX)
	Set the X axis length. More...

double	axisX () const
	Get the X axis length. More...

void	axisY (double axisY)
	Set the Y axis length. More...

double	axisY () const
	Get the Y axis length. More...

void	axisZ (double axisZ)
	Set the Z axis length. More...

double	axisZ () const
	Get the Z axis length. More...

double	distanceTo (const Point3 &point) const override
	Compute Euclidean distance to point. More...

Point3	projectPoint (const Point3 &point) const override
	Project point onto ellipsoid. More...

bool	intersectLine (const Point3 &origin, const Vector3 &direction, Point3 &intersection) const override
	Intersect line with ellipsoid. More...

Vector3	surfaceNormal (const Point3 &point) const
	Compute surface normal at given point. More...

Point3	pointOnHorizon (const Point3 &point, double direction, bool poleLimit=false)
	Compute point on horizon in a given direction. More...

Public Member Functions inherited from spatium::geom3d::Geometry
	Geometry ()=default

virtual	~Geometry ()=default

Protected Member Functions
void	updateTransformation ()
	Update the transformation parameters that transform a sphere into this ellipsoid. These parameters are internally used to represent the ellipsoid as a transformed sphere. More...

Protected Attributes
Matrix4x4	m_ellipsoidalTransformation

Matrix4x4	m_ellipsoidalTransformationInverse

Point3	m_origin

double	m_axisX

double	m_axisY

double	m_axisZ

Friends
std::ostream &	operator<< (std::ostream &os, const Ellipsoid &ellipsoid)
	Output to ostream. More...

Detailed Description

Ellipsoid geometry.

An ellipsoid is defined by a point (origin) and three radii; one for each axis.

Parametric description = x^2 / a^2 + y^2 / b^2 + z^2 / c^2 = 1

The ellipsoid is implemented by a sphere with an ellipsoidal transformation applied to it.

Constructor & Destructor Documentation

◆ Ellipsoid() [1/3]

spatium::geom3d::Ellipsoid::Ellipsoid	(	const Point3 &	origin,
		double	axisX,
		double	axisY,
		double	axisZ
	)

inline

Constructor.

◆ Ellipsoid() [2/3]

spatium::geom3d::Ellipsoid::Ellipsoid	(	double	axisX,
		double	axisY,
		double	axisZ
	)

inline

Constructor.

◆ Ellipsoid() [3/3]

spatium::geom3d::Ellipsoid::Ellipsoid ( const Ellipsoid & other )

default

Copy constructor.

◆ ~Ellipsoid()

virtual spatium::geom3d::Ellipsoid::~Ellipsoid ( )

virtualdefault

Destructor.

Member Function Documentation

◆ axisX() [1/2]

void spatium::geom3d::Ellipsoid::axisX ( double axisX )

inline

Set the X axis length.

Parameters

[in] axisX X axis length

◆ axisX() [2/2]

double spatium::geom3d::Ellipsoid::axisX ( ) const

inline

Get the X axis length.

Returns: X axis length

◆ axisY() [1/2]

void spatium::geom3d::Ellipsoid::axisY ( double axisY )

inline

Set the Y axis length.

Parameters

[in] axisY Y axis length

◆ axisY() [2/2]

double spatium::geom3d::Ellipsoid::axisY ( ) const

inline

Get the Y axis length.

Returns: Y axis length

◆ axisZ() [1/2]

void spatium::geom3d::Ellipsoid::axisZ ( double axisZ )

inline

Set the Z axis length.

Parameters

[in] axisZ Z axis length

◆ axisZ() [2/2]

double spatium::geom3d::Ellipsoid::axisZ ( ) const

inline

Get the Z axis length.

Returns: Z axis length

◆ distanceTo()

double spatium::geom3d::Ellipsoid::distanceTo ( const Point3 & point ) const

inlineoverridevirtual

Compute Euclidean distance to point.

Parameters

[in] point Point

Returns: Distance to point

Implements spatium::geom3d::Geometry.

◆ intersectLine()

bool spatium::geom3d::Ellipsoid::intersectLine	(	const Point3 &	origin,
		const Vector3 &	direction,
		Point3 &	intersection
	)		const

inlineoverridevirtual

Intersect line with ellipsoid.

Parameters

[in]	origin	Origin of line
[in]	direction	Direction of line
[out]	intersection	Intersection point

Returns: True if there is an intersection, otherwise false

Implements spatium::geom3d::Geometry.

◆ operator=()

Ellipsoid& spatium::geom3d::Ellipsoid::operator= ( const Ellipsoid & other )

default

Assignment operator.

◆ origin() [1/2]

void spatium::geom3d::Ellipsoid::origin ( const Point3 & origin )

inline

Set origin of ellipsoid.

Parameters

[in] origin Origin

◆ origin() [2/2]

Point3 spatium::geom3d::Ellipsoid::origin ( ) const

inline

Get origin of ellipsoid.

Returns: Origin

◆ pointOnHorizon()

Point3 spatium::geom3d::Ellipsoid::pointOnHorizon	(	const Point3 &	point,
		double	direction,
		bool	poleLimit = `false`
	)

inline

Compute point on horizon in a given direction.

Parameters

[in]	point	Point above surface (Cartesian)
[in]	direction	Direction towards horizon as polar coordinate in radians. 0 = east, 1/2 pi = north, etc.
[in]	poleLimit	Whether or not to limit the latitude at the poles. It wil not exceed (shrink again) beyond the horizon of the pole.

◆ projectPoint()

Point3 spatium::geom3d::Ellipsoid::projectPoint ( const Point3 & point ) const

inlineoverridevirtual

Project point onto ellipsoid.

Parameters

[in] point Point

Returns: Projected point

Implements spatium::geom3d::Geometry.

◆ surfaceNormal()

Vector3 spatium::geom3d::Ellipsoid::surfaceNormal ( const Point3 & point ) const

inline

Compute surface normal at given point.

Parameters

[in] point Point with X, Y & Z coordinates

Returns: Surface normal

◆ updateTransformation()

void spatium::geom3d::Ellipsoid::updateTransformation ( )

inlineprotected

Update the transformation parameters that transform a sphere into this ellipsoid. These parameters are internally used to represent the ellipsoid as a transformed sphere.

Friends And Related Function Documentation

◆ operator<<

std::ostream& operator<<	(	std::ostream &	os,
		const Ellipsoid &	ellipsoid
	)

friend

Output to ostream.

Member Data Documentation

◆ m_axisX

double spatium::geom3d::Ellipsoid::m_axisX

protected

◆ m_axisY

double spatium::geom3d::Ellipsoid::m_axisY

protected

◆ m_axisZ

double spatium::geom3d::Ellipsoid::m_axisZ

protected

◆ m_ellipsoidalTransformation

Matrix4x4 spatium::geom3d::Ellipsoid::m_ellipsoidalTransformation

protected

◆ m_ellipsoidalTransformationInverse

Matrix4x4 spatium::geom3d::Ellipsoid::m_ellipsoidalTransformationInverse

protected

◆ m_origin

Point3 spatium::geom3d::Ellipsoid::m_origin

protected

The documentation for this class was generated from the following file:

/home/martijn/Development/Projects/SpatiumLib/include/spatium/geom3d/Ellipsoid.h
