#include <Sphere.h>

Inheritance diagram for spatium::geom3d::Sphere:

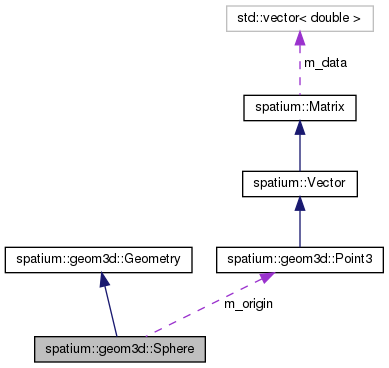

Collaboration diagram for spatium::geom3d::Sphere:

[legend]

Public Member Functions
	Sphere (const Point3 &origin, double radius)
	Constructor. More...

	Sphere (double radius)
	Constructor. More...

	Sphere (const Sphere &other)=default
	Copy constructor. More...

Sphere &	operator= (const Sphere &other)=default
	Assignment operator. More...

virtual	~Sphere ()=default
	Destructor. More...

void	origin (const Point3 &origin)
	Set origin of sphere. More...

Point3	origin () const
	Get origin of sphere. More...

void	radius (double radius)
	Set radius of sphere. More...

double	radius () const
	Get radius of sphere. More...

double	distanceTo (const Point3 &point) const override
	Compute Euclidean distance to point. More...

Point3	projectPoint (const Point3 &point) const override
	Project point onto sphere. More...

bool	intersectLine (const Point3 &origin, const Vector3 &direction, Point3 &intersection) const override
	Intersect line with sphere. More...

Vector3	surfaceNormal (const Point3 &point) const
	Compute surface normal at given point. More...

double	distanceToHorizon (double height) const
	Compute distance to horizon as straight line from a point above surface to the horizon. More...

Point3	pointOnHorizon (const Point3 &point, double direction)
	Compute point on horizon in a given direction. More...

Point3	sphericalToCartesianCoordinates (double longitude, double latitude, double height)
	Compute Cartesian coordinates from spherical coordinates. More...

Point3	cartesianToSphericalCoordinates (double x, double y, double z)
	Compute spherical coordinates from Cartesian coordinates. Cartesian vector (-1, 0, 0) points towards origin of spherical coordinate system. More...

Public Member Functions inherited from spatium::geom3d::Geometry
	Geometry ()=default

virtual	~Geometry ()=default

Protected Attributes
Point3	m_origin

double	m_radius

Friends
std::ostream &	operator<< (std::ostream &os, const Sphere &sphere)
	Output to ostream. More...

Detailed Description

Sphere geometry.

A sphere is defined by a point (origin) and a radius.

Parametric description = x^2 + y^2 + z^2 = r^2

Constructor & Destructor Documentation

◆ Sphere() [1/3]

spatium::geom3d::Sphere::Sphere	(	const Point3 &	origin,
		double	radius
	)

inline

Constructor.

◆ Sphere() [2/3]

spatium::geom3d::Sphere::Sphere ( double radius )

inline

Constructor.

◆ Sphere() [3/3]

spatium::geom3d::Sphere::Sphere ( const Sphere & other )

default

Copy constructor.

◆ ~Sphere()

virtual spatium::geom3d::Sphere::~Sphere ( )

virtualdefault

Destructor.

Member Function Documentation

◆ cartesianToSphericalCoordinates()

Point3 spatium::geom3d::Sphere::cartesianToSphericalCoordinates	(	double	x,
		double	y,
		double	z
	)

inline

Compute spherical coordinates from Cartesian coordinates. Cartesian vector (-1, 0, 0) points towards origin of spherical coordinate system.

Parameters

[in]	x	X coordinate
[in]	y	Y coordinate
[in]	z	Z coordinate

Returns: Point with spherical coordinates: latitude, longitude and height above surface. Latitude and longtiude are in radians.

◆ distanceTo()

double spatium::geom3d::Sphere::distanceTo ( const Point3 & point ) const

inlineoverridevirtual

Compute Euclidean distance to point.

Parameters

[in] point Point

Returns: distance to point

Implements spatium::geom3d::Geometry.

◆ distanceToHorizon()

double spatium::geom3d::Sphere::distanceToHorizon ( double height ) const

inline

Compute distance to horizon as straight line from a point above surface to the horizon.

Parameters

[in] height Height above surface

Returns: Straight distance to horizon Compute distance to horizon as curved line over the surface of the sphere (arc length).

Parameters

[in] height Height above surface

Returns: Curved distance to horizon

◆ intersectLine()

bool spatium::geom3d::Sphere::intersectLine	(	const Point3 &	origin,
		const Vector3 &	direction,
		Point3 &	intersection
	)		const

inlineoverridevirtual

Intersect line with sphere.

Parameters

[in]	origin	Origin of line
[in]	direction	Direction of line
[out]	intersection	Intersection point

Returns: True if there is an intersection, otherwise false

Implements spatium::geom3d::Geometry.

◆ operator=()

Sphere& spatium::geom3d::Sphere::operator= ( const Sphere & other )

default

Assignment operator.

◆ origin() [1/2]

void spatium::geom3d::Sphere::origin ( const Point3 & origin )

inline

Set origin of sphere.

Parameters

[in] origin Origin

◆ origin() [2/2]

Point3 spatium::geom3d::Sphere::origin ( ) const

inline

Get origin of sphere.

Returns: origin

◆ pointOnHorizon()

Point3 spatium::geom3d::Sphere::pointOnHorizon	(	const Point3 &	point,
		double	direction
	)

inline

Compute point on horizon in a given direction.

Parameters

[in]	point	Point above surface
[in]	direction	Direction towards horizon as polar coordinate in radians. 0 = east, 1/2 pi = north, etc.

◆ projectPoint()

Point3 spatium::geom3d::Sphere::projectPoint ( const Point3 & point ) const

inlineoverridevirtual

Project point onto sphere.

Parameters

[in] point Point

Returns: Projected point

Implements spatium::geom3d::Geometry.

◆ radius() [1/2]

void spatium::geom3d::Sphere::radius ( double radius )

inline

Set radius of sphere.

Parameters

[in] radius Radius

◆ radius() [2/2]

double spatium::geom3d::Sphere::radius ( ) const

inline

Get radius of sphere.

Returns: radius

◆ sphericalToCartesianCoordinates()

Point3 spatium::geom3d::Sphere::sphericalToCartesianCoordinates	(	double	longitude,
		double	latitude,
		double	height
	)

inline

Compute Cartesian coordinates from spherical coordinates.

Parameters

[in]	longitude	Longitude in radians
[in]	latitude	Latitude in radians
[in]	height	Height above surface

Returns: Point with cartesian x,y and z coordinates

◆ surfaceNormal()

Vector3 spatium::geom3d::Sphere::surfaceNormal ( const Point3 & point ) const

inline

Compute surface normal at given point.

Parameters

[in] point Point

Returns: Surface normal

Friends And Related Function Documentation

◆ operator<<

std::ostream& operator<<	(	std::ostream &	os,
		const Sphere &	sphere
	)

friend

Output to ostream.

Member Data Documentation

◆ m_origin

Point3 spatium::geom3d::Sphere::m_origin

protected

◆ m_radius

double spatium::geom3d::Sphere::m_radius

protected

The documentation for this class was generated from the following file:

/home/martijn/Development/Projects/SpatiumLib/include/spatium/geom3d/Sphere.h
