spatium::gfx3d::RenderObject Class Reference

Scene object that can be rendered. More...

#include <RenderObject.h>

Inheritance diagram for spatium::gfx3d::RenderObject:

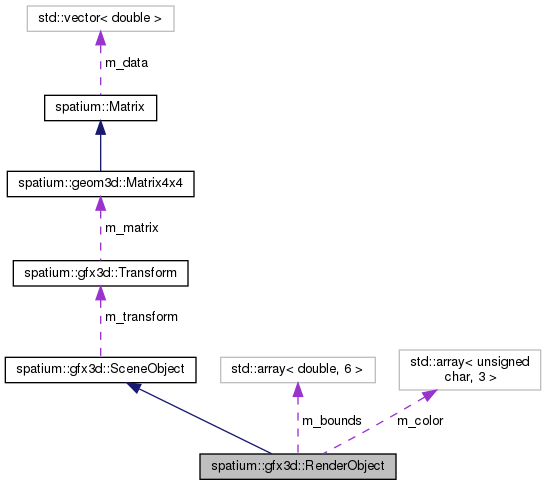

Collaboration diagram for spatium::gfx3d::RenderObject:

Public Member Functions
	RenderObject ()
std::array< double, 6 >	bounds () const
	Get the boundaries of the object; axis aligned. Xmin, Xmax, Ymin, Ymax, Zmin, Zmax. More...
void	setColor (const std::array< unsigned char, 3 > color)
	Set the color. More...
std::array< unsigned char, 3 >	color () const
	Get the color. More...
Public Member Functions inherited from spatium::gfx3d::SceneObject
	SceneObject ()
Transform &	transform ()
	Get the transformation. More...

Protected Member Functions
virtual void	updateBounds ()=0

Protected Attributes
std::array< double, 6 >	m_bounds
std::array< unsigned char, 3 >	m_color
	\TODO: use BoundingBox<double, 3> from namespace idx More...
Protected Attributes inherited from spatium::gfx3d::SceneObject
Transform	m_transform

Detailed Description

Scene object that can be rendered.

A RenderObject has a certain size (bounds).

Constructor & Destructor Documentation

RenderObject()

spatium::gfx3d::RenderObject::RenderObject ( )

inline

Member Function Documentation

bounds()

std::array<double, 6> spatium::gfx3d::RenderObject::bounds ( ) const

inline

Get the boundaries of the object; axis aligned. Xmin, Xmax, Ymin, Ymax, Zmin, Zmax.

Returns

Boundaries

color()

std::array<unsigned char, 3> spatium::gfx3d::RenderObject::color ( ) const

inline

Get the color.

Color is defined as RGB values with range 0 - 255

Returns

Color

setColor()

void spatium::gfx3d::RenderObject::setColor ( const std::array< unsigned char, 3 >  color )

inline

Set the color.

Color is defined as RGB values with range 0 - 255.

Parameters

[in]

col

Color

updateBounds()

virtual void spatium::gfx3d::RenderObject::updateBounds ( )

protectedpure virtual

Implemented in spatium::gfx3d::Mesh.

Member Data Documentation

m_bounds

std::array<double, 6> spatium::gfx3d::RenderObject::m_bounds

protected

m_color

std::array<unsigned char, 3> spatium::gfx3d::RenderObject::m_color

protected

\TODO: use BoundingBox<double, 3> from namespace idx

---

The documentation for this class was generated from the following file:

• /home/martijn/Development/Projects/SpatiumLib/include/spatium/gfx3d/RenderObject.h
