A node in a point quadtree (a quadrant) More...
#include <Quadtree.h>
Inheritance diagram for spatium::idx::PointQuadtreeNode:

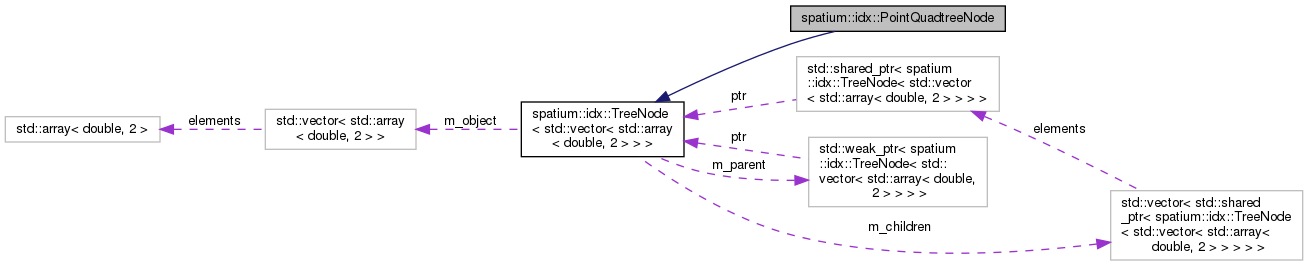

Collaboration diagram for spatium::idx::PointQuadtreeNode:
Public Member Functions | |
| PointQuadtreeNode (const std::weak_ptr< PointQuadtreeNode > &parent=std::weak_ptr< PointQuadtreeNode >()) | |
| Constructor. More... | |
| bool | createChildren (const std::shared_ptr< PointQuadtreeNode > &parentSharedPtr) |
| Create 4 children nodes. More... | |
 Public Member Functions inherited from spatium::idx::TreeNode< std::vector< std::array< double, 2 > > > | |
| TreeNode (std::weak_ptr< TreeNode< std::vector< std::array< double, 2 > > >> parent=std::weak_ptr< TreeNode< std::vector< std::array< double, 2 > > >>(), size_t estimatedChildCount=0) | |
| Constructor. More... | |
| TreeNode (const std::vector< std::array< double, 2 > > &object, std::weak_ptr< TreeNode< std::vector< std::array< double, 2 > > >> parent=std::weak_ptr< TreeNode< std::vector< std::array< double, 2 > > >>(), size_t estimatedChildCount=0) | |
| Constructor. More... | |
| bool | hasChildren () |
| size_t | childCount () const |
| Get child count. More... | |
| std::shared_ptr< TreeNode< std::vector< std::array< double, 2 > > > > | child (size_t index) const |
| Get a child. More... | |
| std::shared_ptr< TreeNode< std::vector< std::array< double, 2 > > > > | addChild (const std::shared_ptr< TreeNode< std::vector< std::array< double, 2 > > >> &parentSharedPtr, const std::vector< std::array< double, 2 > > &object) |
| Add child node. More... | |
| std::vector< std::array< double, 2 > > & | object () |
| Set the object. More... | |
| void | setObject (const std::vector< std::array< double, 2 > > &object) |
| Get the object. More... | |
Additional Inherited Members | |
| Protected Attributes inherited from spatium::idx::TreeNode< std::vector< std::array< double, 2 > > > | |
| std::weak_ptr< TreeNode< std::vector< std::array< double, 2 > > > > | m_parent |
| std::vector< std::shared_ptr< TreeNode< std::vector< std::array< double, 2 > > > > > | m_children |
| std::vector< std::array< double, 2 > > | m_object |
Detailed Description
A node in a point quadtree (a quadrant)
Constructor & Destructor Documentation
◆ PointQuadtreeNode()
|
inline |
Constructor.
- Parameters
-
[in] Parent node (unset for root node)
Member Function Documentation
◆ createChildren()
|
inline |
Create 4 children nodes.
- Parameters
-
[in] parentSharedPtr Parent node (this object) as shared pointer
- Returns
- True on success, false if children already existed.
The documentation for this class was generated from the following file:
- /home/martijn/Development/Projects/SpatiumLib/include/spatium/idx/Quadtree.h
