spatium::geom3d::Spheroid Class Reference

Spheroid geometry. More...

#include <Spheroid.h>

Inheritance diagram for spatium::geom3d::Spheroid:

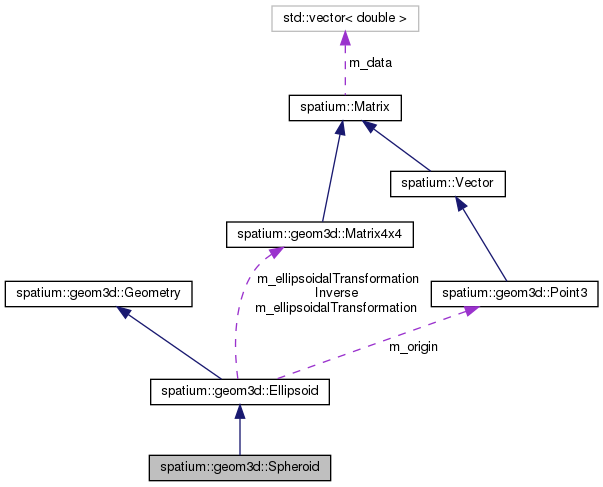

Collaboration diagram for spatium::geom3d::Spheroid:

Public Member Functions
	Spheroid (const Point3 &origin, double axisXY, double axisZ)
	Constructor. More...
	Spheroid (double axisXY, double axisZ)
	Constructor. More...
	Spheroid (const Spheroid &other)=default
	Copy constructor. More...
Spheroid &	operator= (const Spheroid &other)=default
	Assignment operator. More...
virtual	~Spheroid ()=default
	Destructor. More...
void	axisXY (double axisXY)
	Set X and Y axis length. More...
double	axisXY () const
	Get X and Y axis length. More...
Public Member Functions inherited from spatium::geom3d::Ellipsoid
	Ellipsoid (const Point3 &origin, double axisX, double axisY, double axisZ)
	Constructor. More...
	Ellipsoid (double axisX, double axisY, double axisZ)
	Constructor. More...
	Ellipsoid (const Ellipsoid &other)=default
	Copy constructor. More...
Ellipsoid &	operator= (const Ellipsoid &other)=default
	Assignment operator. More...
virtual	~Ellipsoid ()=default
	Destructor. More...
void	origin (const Point3 &origin)
	Set origin of ellipsoid. More...
Point3	origin () const
	Get origin of ellipsoid. More...
void	axisX (double axisX)
	Set the X axis length. More...
double	axisX () const
	Get the X axis length. More...
void	axisY (double axisY)
	Set the Y axis length. More...
double	axisY () const
	Get the Y axis length. More...
void	axisZ (double axisZ)
	Set the Z axis length. More...
double	axisZ () const
	Get the Z axis length. More...
double	distanceTo (const Point3 &point) const override
	Compute Euclidean distance to point. More...
Point3	projectPoint (const Point3 &point) const override
	Project point onto ellipsoid. More...
bool	intersectLine (const Point3 &origin, const Vector3 &direction, Point3 &intersection) const override
	Intersect line with ellipsoid. More...
Vector3	surfaceNormal (const Point3 &point) const
	Compute surface normal at given point. More...
Point3	pointOnHorizon (const Point3 &point, double direction, bool poleLimit=false)
	Compute point on horizon in a given direction. More...
Public Member Functions inherited from spatium::geom3d::Geometry
	Geometry ()=default
virtual	~Geometry ()=default

Friends
std::ostream &	operator<< (std::ostream &os, const Spheroid &spheroid)
	Output to ostream. More...

Additional Inherited Members
Protected Member Functions inherited from spatium::geom3d::Ellipsoid
void	updateTransformation ()
	Update the transformation parameters that transform a sphere into this ellipsoid. These parameters are internally used to represent the ellipsoid as a transformed sphere. More...
Protected Attributes inherited from spatium::geom3d::Ellipsoid
Matrix4x4	m_ellipsoidalTransformation
Matrix4x4	m_ellipsoidalTransformationInverse
Point3	m_origin
double	m_axisX
double	m_axisY
double	m_axisZ

Detailed Description

Spheroid geometry.

A spheroid is an ellipsoid with two equal semi-diamters.

A spheroid is defined by a point (origin) and two radii:

• Equatorial radius (axisXY)
• Polar radius (axisZ)

Parametric description = (x^2 + y^2) / a^2 + z^2 / c^2 = 1

Constructor & Destructor Documentation

Spheroid() [1/3]

spatium::geom3d::Spheroid::Spheroid ( const Point3 &  origin, double  axisXY, double  axisZ  )

inline

Constructor.

Parameters

[in]	origin	Origin
[in]	axisXY	X and Y axis length
[in]	axisZ	Z axis length

Spheroid() [2/3]

spatium::geom3d::Spheroid::Spheroid ( double  axisXY, double  axisZ  )

inline

Constructor.

Parameters

[in]	axisXY	X and Y axis length
[in]	axisZ	Z axis length

Spheroid() [3/3]

spatium::geom3d::Spheroid::Spheroid ( const Spheroid &  other )

default

Copy constructor.

~Spheroid()

virtual spatium::geom3d::Spheroid::~Spheroid ( )

virtualdefault

Destructor.

Member Function Documentation

axisXY() [1/2]

void spatium::geom3d::Spheroid::axisXY ( double  axisXY )

inline

Set X and Y axis length.

Parameters

[in]

axisXY

X and Y axis length.

axisXY() [2/2]

double spatium::geom3d::Spheroid::axisXY ( ) const

inline

Get X and Y axis length.

Returns

X and Y axis length

operator=()

Spheroid& spatium::geom3d::Spheroid::operator= ( const Spheroid &  other )

default

Assignment operator.

Friends And Related Function Documentation

operator<<

std::ostream& operator<< ( std::ostream &  os, const Spheroid &  spheroid  )

friend

Output to ostream.

---

The documentation for this class was generated from the following file:

• /home/martijn/Development/Projects/SpatiumLib/include/spatium/geom3d/Spheroid.h
